38-Way Single Pole Earth Bar - 013-DBEB

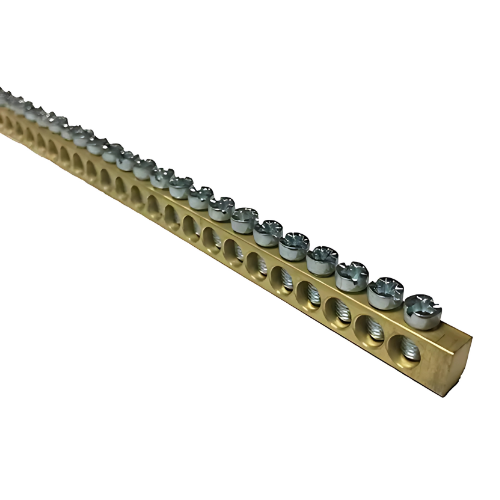

38- Way Single Pole Earth Bar
High-Performance Grounding Solution (OEM & Custom Available)
The 38-Way Single Pole Earth Bar is a high-quality grounding solution engineered for safe, efficient, and reliable electrical installations. Designed to provide a central grounding point, this earth bar supports up to 38 individual connections, making it ideal for commercial, industrial, and infrastructure applications worldwide.
🔑 Key Features
| Feature | Details |
|---|---|
| 38 Terminal Capacity | Designed to handle up to 38 separate grounding connections, ideal for high-load systems |
| High Conductivity | Made from electrolytic-grade copper for superior electrical performance and low resistance |
| Single Pole Layout | Simplified design makes installation & maintenance quick and efficient |
| OEM & Customization | Custom size, layout, terminal spacing, material, finish, and branding available |
| Durable Insulation Base | Mounted on impact-resistant nylon or ceramic insulators for secure and safe grounding |
| RoHS & ISO Certified | RoHS compliant and ISO 9001:2015 certified production for global safety & quality |
| Mounting Options | Baseplate with pre-drilled holes, DIN rail optional, custom mounting on request |
| Global Shipping & Docs | Export-ready with REACH, RoHS, ISO, CE support and multilingual documentation |
⚙️ Technical Specifications
| Specification | Details |
|---|---|
| Type | 38-Way Single Pole Earth Bar |
| Material | Electrolytic Copper (standard) / Brass / Custom alloys |
| Fixing Hardware | Stainless Steel / Zinc-Plated Screws |
| Voltage Rating | Up to 660V AC/DC |
| Current Rating | Typically 100A (custom options available) |
| Operating Temp | -40°C to +120°C |
| Mounting | Insulated baseplate / Panel mount / DIN rail (optional) |
| Finish Options | Natural / Tin-Plated / Nickel-Plated / Custom Coating |
| Compliance | ISO 9001:2015 / RoHS / CE / REACH |
| Packaging Options | Bulk Pack / Retail Box / Custom Branded Packaging |
| MOQ | 1000 Pieces |
| Lead Time | 3–7 Working Days (may vary for large or OEM orders) |
🌍 Applications
Electrical control panels & distribution boards
Industrial machinery grounding
Commercial infrastructure (malls, offices, etc.)
Renewable energy systems (solar, wind)
Large-scale installations (airports, railways, data centers)
✅ Certifications & Standards
RoHS Compliant (EU Directive 2011/65/EU)
ISO 9001:2015 Certified Manufacturing
REACH, CE documents available upon request
UL & IEC conformity upon OEM requirement
📦 Packaging & Delivery
| Detail | Options |
|---|---|
| Packing | Inner plastic wrap / Carton / Wooden Box / Branded Packaging |
| Shipping | Global – via Sea, Air or Courier |
| Export Docs | HS Code, COO, RoHS, ISO, CE, REACH |
💼 Why Choose DUTUX?
🛠 OEM Expertise – Tailored product design, branding & documentation
🚚 Fast Turnaround – Rapid dispatch and reliable global logistics
📈 Trusted Quality – Compliant, consistent and export-ready
🔧 Technical Support – Application guidance and datasheets included
💰 Value Driven – Competitive pricing for wholesale and projects
📩 Request a Sample or Quote
Whether you’re an OEM, distributor, contractor or electrical panel manufacturer — our 38-Way Earth Bar is engineered to deliver performance, safety, and custom-fit solutions.
📧 Contact us now for pricing, samples, custom drawings, or bulk inquiries.
