12-Way Triple Pole Earth Bar - 017-DBEB

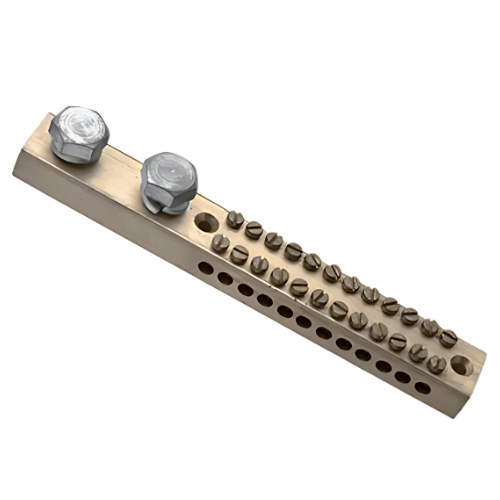

12- Way Triple Pole Earth Bar
High-Quality Grounding Solution | RoHS, ISO Certified, OEM & Custom Options
Ensure optimal safety and reliability with our 12-Way Triple Pole Earth Bar. Designed to meet the highest standards in electrical grounding and earthing, this product is perfect for use in industrial, commercial, and residential applications. With a focus on durability, flexibility, and safety, our earth bar is engineered for easy installation and long-term performance, making it a trusted solution for various grounding needs.
🔑 Key Features
| Feature | Details |
|---|---|
| 12-Way Triple Pole Design | Accommodates 12 terminals with triple-pole configuration for improved safety and balanced load distribution |
| OEM & Customization | Tailored to your requirements – custom hole patterns, materials, mounting options, and branding available |
| High Durability | Withstands temperature extremes, vibration, and corrosion in industrial environments |
| RoHS Compliant | Free from hazardous substances such as lead, mercury, cadmium, ensuring environmental safety |
| ISO Certified Manufacturing | Made under ISO 9001:2015 Quality Management System for consistent and reliable product quality |
| Easy Installation | Clearly marked terminals, pre-drilled mounting points, and robust construction simplify setup and maintenance |
📐 Technical Specifications
| Specification | Details |
|---|---|
| Type | 12-Way Triple Pole Earth Bar |
| Material Options | High-Grade Copper / Brass / Tin-Plated / Custom Alloys |
| Configuration | Triple Pole with 12 Earth Terminals |
| Finish Options | Natural, Tin-Plated, Nickel-Plated, Chrome, or Custom |
| Mounting Options | Insulator Base / Panel Mount / DIN Rail Mount (Optional) |
| Voltage Rating | Up to 660V AC/DC (dependent on design) |
| Current Capacity | Up to 150A (customizable as per requirement) |
| Operating Temp. | -40°C to +125°C |
| Certifications | ISO 9001:2015, RoHS Compliant |
| MOQ | 1000 Pieces |
| Lead Time | 3–7 Working Days (Standard) |
| Packaging | Poly Bag, Carton Box, Custom OEM Packaging |
🌍 Application Areas
| Sector | Use Cases |
|---|---|
| Electrical Panels | Secure and compliant grounding for control and distribution panels |
| Industrial Systems | Used in grounding large machines, motors, and power systems |
| Power Distribution Units | Ensures fault protection and safe electrical discharge in high-current zones |
| Control Rooms & Substations | Maintains safety and stability in critical energy infrastructure |
| Renewable Energy Systems | Solar, Wind, BESS systems requiring robust grounding solutions |
| Telecom & Data Centers | Protects sensitive equipment from surges and leakage current |
| Automotive Manufacturing | Prevents grounding issues in assembly lines and plant equipment |
✅ Benefits
| Benefit | Why It Matters |
|---|---|
| 🔒 Superior Electrical Safety | Minimizes risk of shock, fire, and system failure by ensuring stable grounding |
| 🌍 Global Standards Compliance | Certified for use in international projects adhering to RoHS and ISO standards |
| 🧩 Flexible Customization | Designed to meet your exact project or product specifications |
| 🛡️ Long-Term Durability | Withstands industrial wear, thermal expansion, and environmental exposure |
| 💼 OEM Branding | Available with custom logo engraving, labeling, and packaging for private label use |
| 💰 Cost-Efficient | Long life span, minimal maintenance, and reduced system failures save on operational costs |
🧩 Customization Options
| Customizable Feature | Available Options |
|---|---|
| Terminal Count & Layout | Adjust number of terminals and spacing as per application |
| Bar Material & Coating | Brass / Copper / Tin / Nickel / Chrome / Special Alloys |
| Mounting Accessories | Nylon Insulators / Ceramic Insulators / Screws / DIN Mount |
| Dimensions | Custom length, width, and hole spacing |
| Branding | Laser Engraving / Pad Printing / Sticker Label |
| Packaging | Bulk / Retail Box / Barcoded OEM Packaging |
🛒 Order Now or Request a Custom Quote
Whether you’re sourcing for high-capacity power panels, renewable energy projects, or control systems, the DUTUX 12-Way Triple Pole Earth Bar offers a reliable, certified, and customizable solution tailored to your needs.
📞 Contact us for:
Bulk pricing
OEM projects
Samples & datasheets
Technical drawings
