12-Way Single Pole Earth Bar - 009-DBEB

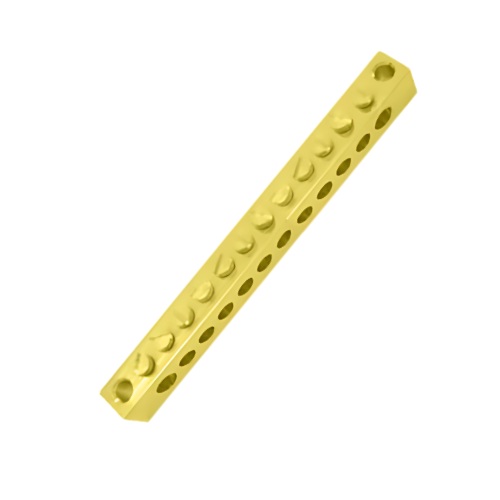

12- Way Single Pole Earth Bar
12-Way Single Pole Earth Bar – Premium Grounding Solution for Electrical Safety
Our 12-Way Single Pole Earth Bar is an advanced, high-performance grounding solution designed to enhance the safety and reliability of electrical installations. Ideal for both residential and commercial applications, this earth bar ensures a secure and effective connection to the ground, minimizing the risk of electrical hazards. With the perfect balance of innovation and durability, it is suitable for a wide range of environments, from industrial complexes to data centers and residential buildings.
🌟 Key Features & Benefits
| Feature | Benefit |
|---|---|
| 12-Way Configuration | Accommodates up to 12 individual grounding wires – ideal for large-scale panels |
| Single Pole Design | Space-saving layout ensures fast integration into panels and distribution boards |
| OEM/Custom Design | Personalized dimensions, mounting styles, finishes, and terminal configurations |
| ROHS Compliant | Free from hazardous substances – eco-friendly & suitable for EU markets |
| ISO 9001 Certified | Manufactured with consistent quality and international standards |
| Built to Last | Engineered with corrosion-resistant materials and robust construction |
| International Compliance | Meets IEC, UL, CE, and other global electrical safety standards |
⚙️ Technical Specifications
| Specification | Details |
|---|---|
| Material Options | High-conductivity Copper / Aluminum (as per application) |
| Mounting | DIN Rail / Panel Mount (Standard options – custom on request) |
| Temperature Range | -40°C to +105°C |
| Voltage Rating | Up to 600V AC/DC |
| Current Rating | Up to 100A (varies based on wire gauge and layout) |
| Finish Options | Natural / Nickel Plated / Tin Plated / Custom Coatings |
| Wire Compatibility | Supports multiple wire sizes (AWG & metric) |
| Customization | Branding, terminal size, mounting holes, plating & packaging available |
🔌 Applications
Industrial Plants – Safe grounding for machinery and high-voltage systems
Commercial Buildings – Structured earthing for malls, offices, and data centers
Renewable Energy – Grounding for solar and wind energy installations
Power Distribution – For switchgear, MCC panels, and control systems
Residential Complexes – Secure and scalable multi-point grounding
📦 Packing & Delivery
| Packing Types | Bag / Box / Inner Plastic / Carton / Wooden Box / Custom-labeled OEM Packs |
|---|---|
| MOQ | 1000 Pieces |
| Lead Time | 3 Working Days (bulk & custom orders negotiable) |
| Available Pricing Terms | EX-Works, FOB, C&F, CIF |
✅ Certifications & Compliance
ISO 9001 – Quality Management System
RoHS Compliant – EU Environmental Directive 2011/65/EU
REACH & CE Ready – On request for EU markets
Tested – For grounding efficiency, load capacity, and thermal resistance
💼 Why Choose DUTUX?
🛠️ OEM & Tailored Engineering
🚚 Global Logistics & Support
🧪 Reliable, Certified Performance
💰 Cost-Effective, Scalable Production
📩 Get in Touch for OEM Customization & Bulk Orders
Contact us today for datasheets, pricing, or to co-develop a model tailored to your panel or system design.
